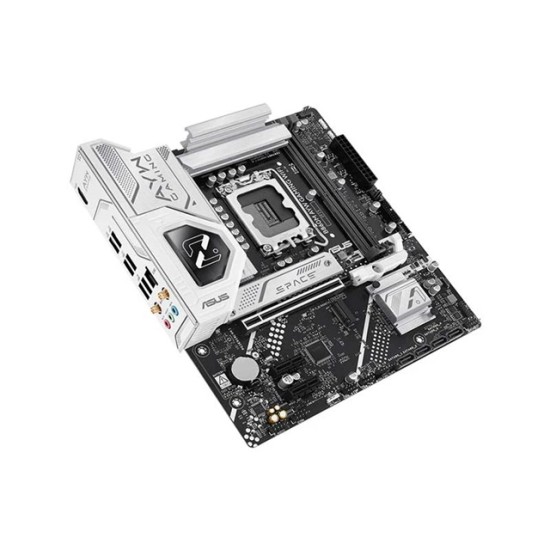

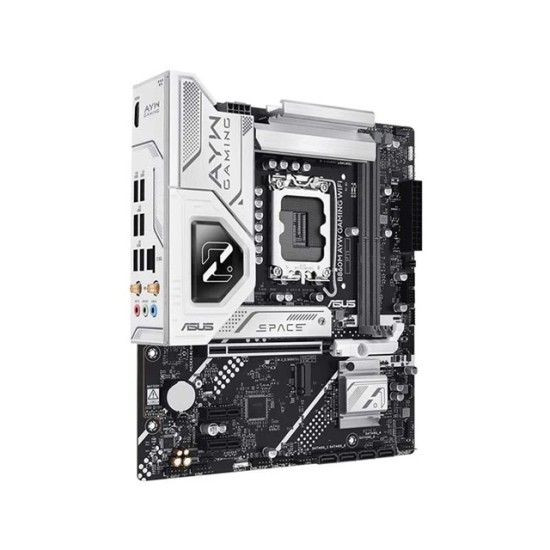

ASUS B860M AYW GAMING WIFI DDR5 (Intel Core Ultra LGA1851 Socket) LGA1851 mATX Gaming Motherboard

Status: In Stock
Model: ASUS B860M AYW GAMING WIFI

Based on 0 reviews. - Write a review

25,300৳

Ex Tax: 25,300৳

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

Key Features

Price Change Declaimer

UMBRELLA can change The price of any product at any moment due to the volatile price of the technology product.

Payment Options

Visa & Mastercard.

Mobile Banking ~~(5 banks)~~

Internet Banking ~~(10 Banks)~~

Cash Payment

Product Image Declaimer

Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch

Product Information Declaimer

We cannot guarantee that the information on this page is 100% correct. UMBRELLA is not liable for usage outcomes.

General
Brand	ASUS
Model	Asus B860M AYW GAMING (Wi-Fi 6)
Body Color	Black & Silver
Part No	B860M AYW GAMING WIFI
Speaker
Memory Card Slot	Dual
CPU
Chipset Brand	Intel
Chipset	Intel B860
Sockets Supported	LGA1851
Built-in Processor	No
Supported CPU	Intel Core Ultra Processors (Series 2)
Generation	Ultra
Memory Support
Memory Max.	128GB
Memory Type	DDR5
Memory MHz	8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s non-ECC Un-buffered DIMM
Memory Slot	2
Optane Memory Support	No
Storage
Storage Interface	6.0Gb/s
M.2/SSD Expansion Slot	2
M.2/SSD Expansion Slot Details	2 x M.2 (1 x M.2, type 2280 (supports PCIe 5.0 x4 mode), 1 x M.2, type 2280 (supports PCIe 4.0 x4 mode)
Graphics
Graphics	Integrated
Graphics Chipset	Integrated With Processor
Multi-GPU Support	No
PCI Express Slot	1 x PCIe 4.0 x16 slot, 2 x PCIe 4.0 x1 slots
Interface
Bluetooth	Bluetooth 5.3
Audio & Video
Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC
Technical Info
Approx. Power Consumption	60W
Back-Connect Design	No
Cable Management	Front
Heatsink	Yes
CrossFire Support	No
Sli Support	No
Raid Support	0, 1, 5, 10
RGB Support	No
Form Factor	Micro-ATX
Ports & Slots

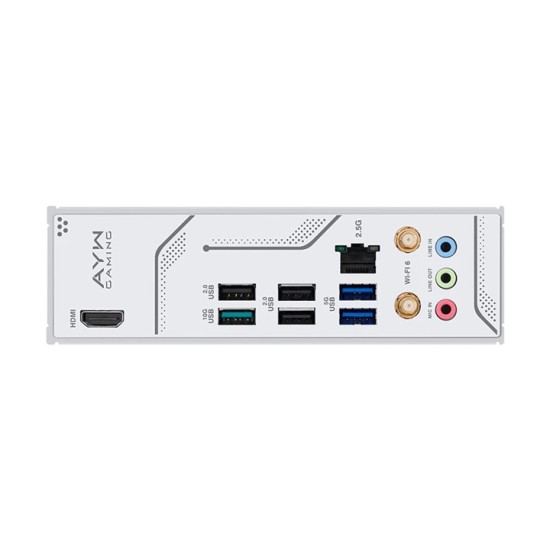

USB Port	1 x USB 10Gbps port (1 x Type-A), 2 x USB 5Gbps ports (2 x Type-A), 3 x USB 2.0 ports (3 x Type-A)
HDMI Port	1
SATA Port	4
Thunderbolt	No
Display Port	No
VGA/D-Sub	No
DVI Port	No
Network & Connectivity
LAN Chipset	1 x Realtek 2.5Gb Ethernet
LAN Speed (Mbps)	100/ 1000/ 2500Mbps
WiFi	Yes
WiFi Technology	Wi-Fi 6
BIOS Information
BIOS Type	256(128+128) Mb Flash ROM
BIOS Model	UEFI AMI BIOS
Compatibility
Supported Operating System	Windows 11, Windows 10
Compatible Products	Intel Core Ultra Processors (Series 2), LGA1851
Warranty
Warranty Details	3 Year Replacement
Additional Info
Feature	Special Features: ASUS 5X PROTECTION III: DIGI+VRM, LANGuard, Overvoltage protection, SafeSlot Core+, Stainless-steel back I/O, ASUS Q-Design: M.2 Q-Latch, PCIe Slot Q-Release, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot, ASUS Thermal Solution: M.2 heatsink, VRM heatsinks design, ASUS EZ DIY: ProCool, Pre-mounted I/O shield, Aura Sync: Addressable Gen2 headers
Others	Accessories: Cables: 2 x SATA 6Gb/s cables, Miscellaneous: 1 x ASUS Wi-Fi moving antenna, 1 x M.2 rubber package, 1 x screw package for M.2 SSD, documentation, 1 x quick start guide, Manageability: WOL by PME, PXE, Software Features: ASUS Exclusive Software: Armoury Crate, Aura Sync, Fan Xpert 2+, Power Saving, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial), UEFI BIOS: ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, Internal I/O Connectors: Fan and Cooling Related: 1 x 4-pin CPU fan header, 2 x 4-pin chassis fan headers, Power Related: 1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector, Storage Related: 2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, USB: 1 x USB 5Gbps connector (supports USB Type-C), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, Miscellaneous: 3 x Addressable Gen2 headers, 1 x Clear CMOS header, 1 x COM Port header, 1 x Front Panel Audio header (F AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), and 1 x 10-1 pin Front Panel System header.
Country Of Origin	Taiwan
Made in / Assemble	China

The ASUS B860M AYW GAMING WIFI is a powerful micro-ATX motherboard built for next-gen performance. Featuring the Intel B860 chipset and LGA1851 socket, it supports Intel Core Ultra processors (Series 2) and up to 128GB DDR5 RAM with speeds reaching 8800+ MT/s (OC). With PCIe 4.0, dual M.2 slots, and Wi-Fi 6, this board is ideal for gamers, creators, and power users. The inclusion of Realtek 2.5Gb Ethernet, Bluetooth 5.3, and USB Type-C ensures blazing-fast connectivity and future-ready expansion.

B860M AYW GAMING WIFI
ASUS B860 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). The B860M AYW GAMING WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
